Waveguide to Coax Adapters
These low cost, high performance adapters are designed
for the most demanding commercial applications.
They feature Low VSWR, Low Insertion Loss and offer full bandwidth or lower VSWR versions in a narrower bandwidth.
All adapters are Lead and Cadmium
free to meet RoHS standards. They are available in Red, Dove Gray or Blue (custom colors also available).
On-Line Pricing

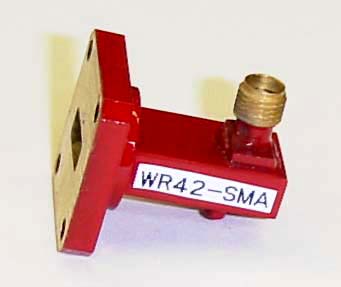

WR-42-SMA-F-CF-B-T-R
| Model Number Female |
Model Number Male |
Waveguide Size (EIA) |
Frequency Range |
VSWR |
Coax Connector |
Length |
WR430-SMA-F |
WR-430-SMA-M |
WR-430 |
1.7-2.6 GHz |
1.25 |
SMA |
4.2" |
WR340-SMA-F |
WR340-SMA-M |
WR-340 |
2.2-3.3 GHz |
1.25 |
SMA |
3.5" |
WR284-SMA-F |
WR284-SMA-M |
WR-284 |
2.6-3.95 GHz |
1.25 |
SMA |
3.0" |
WR229-SMA-F |
WR229-SMA-M |
WR-229 |
3.3-4.9 GHz |
1.25 |
SMA |
2.2" |
WR187-SMA-F |
WR187-SMA-M |
WR-187 |
3.95-5.85 GHz |
1.25 |
SMA |
2.0" |
WR159-SMA-F |
WR159-SMA-M |
WR-159 |
4.90-7.05 GHz |
1.25 |
SMA |
2.0" |
WR137-SMA-F |
WR137-SMA-M |
WR-137 |
5.85-8.20 GHz |
1.25 |
SMA |
1.75" |
WR112-SMA-F |
WR112-SMA-M |
WR-112 |
7.05-10.0 GHz |
1.25 |
SMA |
1.5" |
WR102-SMA-F |
WR102-SMA-M |
WR-102 |
7.00-11.0 GHz |
1.25 |
SMA |
1.5" |
WR90-SMA-F |
WR90-SMA-M |
WR-90 |
8.20-12.4 GHz |
1.25 |
SMA |
1.5" |
WR75-SMA-F |
WR75-SMA-M |
WR-75 |
10.0-15.0 GHz |
1.25 |
SMA |
1.5" |
WR62-SMA-F |
WR62-SMA-M |
WR-62 |
12.4-18.0 GHz |
1.25 |
SMA |
1.5" |
WR51-SMA-F |
WR51-SMA-M |
WR-51 |
15.0-22.0 GHz |
1.25 |
SMA |
1.5" |
WR42-SMA-F |
WR42-SMA-M |
WR-42 |
18.0-26.5 GHz |
1.25 |
SMA* |
1.0" |
WR34-SMA-F |
WR34-SMA-M |
WR-34 |
22.0-33.0 GHz |
1.25 |
SMA* |
1.0" |
WR28-S2.92mm-F |
WR28-2.92mm-M |
WR-28 |
26.5-40.0 GHz |
1.3 |
2.92 mm |
1.0" |
WR22-2.92mm-F |
WR22-2.92mm-M |
WR-22 |
33.0-50.0 GHz |
1.3 |
2.92 mm |
1.0" |
WR19-2.92mm-F |
WR19-2.92mm-M |
WR-19 |
40.0-60.0 GHz |
1.3 |
2.92 mm |
1.0" |
WR15-2.92mm-F |
WR15-2.92mm-M |
WR-15 |
50.0-67.0 GHz |
1.3 |
2.92 mm |
1.0" |
* 3.5 mm Optional
Insertion Loss for WR-34 and Larger Is <0.25 dB Typical, For WR-28 and Smaller <0.3 dB Typical
Complete Part Number Example Would Be:
WR42-SMA-F-CF-B-T-R or WR42-3.5mm-F-CF-B-T-R
Where:
WR42 = Waveguide Size
SMA (or 3.5mm) = Connector Type
F = Female Coax Connector
CF = Cover Flange, CH = Choke Flange
B = Brass Flange, S = Coin Silver Flange
T = Tuned (2 GHz BW), or BB = Broadband (Full Waveguide Bandwidth)
R = RoHS
Also Specify Quantity and Color.
